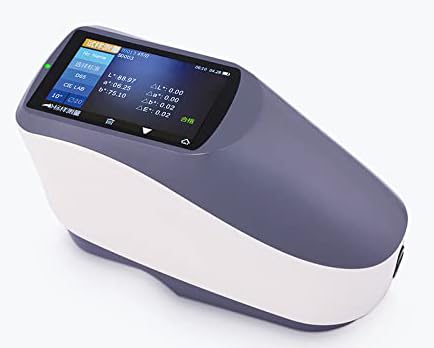

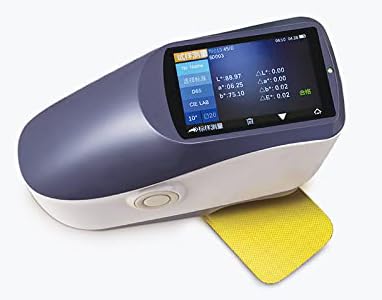

Paint Spectrophotometer 45°/0 Color Spectrophotometer Grating Spectrophotometer for Plastic Plastic with USB Bluetooth 4.0 Capacitive Touch Screen Data Memory Standard 1000 Sample 30000

PRODUCT FEATURES: ☀Integrating Sphere Size:Φ48mm ☀Light Source:Combined LED Light, UV Light ☀Spectral separation device:Concave Grating ☀Detector:256 Image Element Double Array CMOS Image Sensor ☀Wavelength Range:400~700nm ☀Wavelength Pitch:10nm ☀Half Bandwidth:10nm ☀Reflectance Range:0~200% ☀Measuring Aperture:MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm ☀Color Space:CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy ☀Color Difference Formula:ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） ☀Observer Angle:2°/10° ☀Illuminant:D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30) ☀Display Data:Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset ☀Measurement Time:About 1.5s ☀Repeatability: Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) ☀Inter-instrument Error:Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) ☀Measurement mode:Single Measurement, Average Measurement(2-99) ☀Size(L*W*H):184*77*105mm ☀Weight:About 600g ☀Power source:Li-ion battery. 5000 measurements within 8 hours ☀Illuminant Life Span:5 years, more than 3 million times measurements ☀Display:3.5-inch TFT color LCD, Capacitive Touch Screen ☀Interface:USB, Bluetooth 4.0 ☀Data memory:Standard 1000 Pcs, Sample 30000 Pcs ☀Language:Chinese,English ☀Storage Environment:Temperature: -20~50℃; Humidity: 0~85% (No Condensation) ☀Standard Accessory:Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. ☀Optional Accessory:Micro Printer, Powder Test Box, Universal test components, Locating Plate

• 1.Wavelength Range ： 400-700nm； Wavelength Interval ： 10nm ； Semiband Width： 10nm ；Measured Reflectance Range： 0-200；%
• 2.IlluminantD65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
• 3.Inter-instrument Error Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles)
• 4.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor; USB port, widely useful;
• 5. High accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.
